Fire Rated Roller Shutter Door
- 120mm x 60mm x 1.8mm
- 100mm x 50mm x 1.5mm (with seals)
- 390mm x 50mm x 1.5mm
Application:
A model of roller shutter door with fire resistance and function of interlocking with building fire control center. The door can be controlled by the fire control center, and it can also be equipped with sensors like smoke sensor or temperature sensor directly. When there is fire accident, the door can receive the fire accident signal and automatically close to prevent spreading of fire.
Slats :
The door slats were made of double-layer 0.8mm thick galvanized steel plate, and the door panel is filled with 10mm aluminum silicate fireproof cotton, which has the function of fireproof and temperature insulation.
Track :
The track adopts a 1.5mm thick galvanized steel rail. The rail is internally covered with a smoke-proof sealing strip, which is heated to expand and isolate smoke and heat.

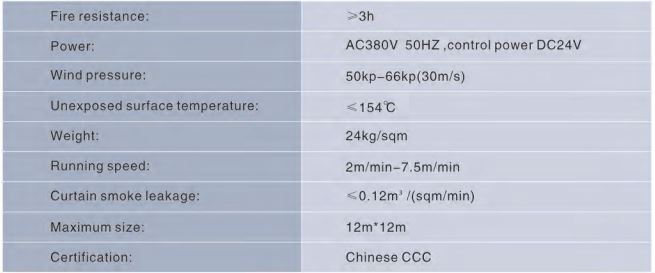

Technical Data
